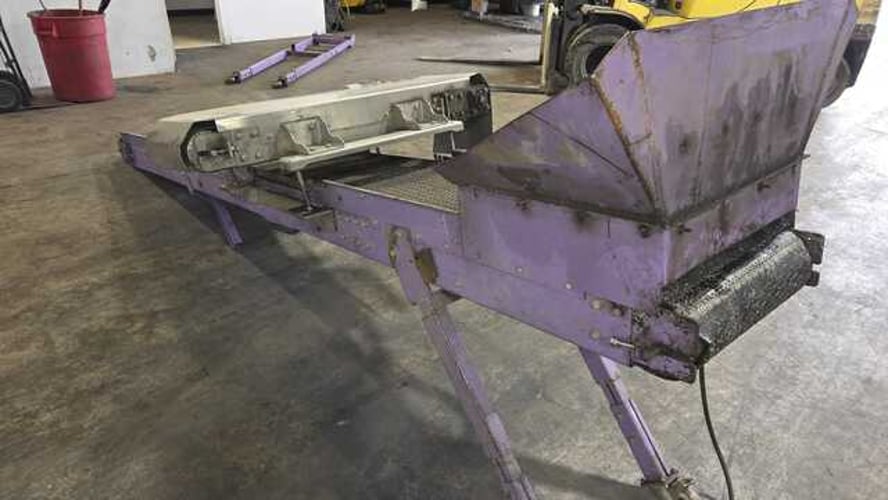

• Redoma Recycling AB Conveyor & Separation Specs:
• Conveyor with Drum Magnet Power (for copper recovery): 0.33 kW [1]
• Maximum Infeed Capacity (based on 50% copper power cable): 550 to 700 kg/h [1]
• Total Installed System Power: 53 to 61 kW [1]
• System Weight (Approximate): 6,000 to 6,700 kg [1]
• Layout Conveyor Length: 5,400 mm (~17.7 feet) [2]

• Magnapower Crossbelt Overband Magnet Specs (Closest matching 24" / 610mm size):
• Cleaning Belt Style: Rotation [3]
• Cleaning Belt Motor: 1.1 kW [3, 4]
• Power Supply: 400V / 3 Phase / 50Hz [3, 4]
• Magnetic Strength (Gauss): 13,000 per 2/cm @ 250mm | 7,000 per 2/cm @ 350mm [3]
• Maximum Working Gap: 300 mm (12") [3] (or 150 - 200 mm depending on model [4])
• Mounting Configuration: Overband [3, 4]
