### General Information
- **Approximate Capacity**: 15-35 Tons per Hour
- **Motor Power**: 400 HP
- **Voltage**: 3-Phase, 60 Hz, 220/440 Volts
- **Weight**: Approx. 44,000 lbs (Plus Conveyors)

### Included Components
- **Infeed and Discharge Conveyors**
- **Spare Motor**
- **Hopper and Base**

### Functional Design
- **Purpose**: High-volume primary reduction of:
- Aluminum castings
- Metal turnings
- Crank cases
- Pistons
- Beer barrels, etc.

### Technical Specifications
- **Rotor Dimensions**: 48" Diameter x 50" Width
- **Main Shaft**: Constructed of heat-treated alloy steel
- **Shredder Rings**: Manganese composition for durability
- **Liners**: Manganese steel

### Features
- **Bearings**: Equipped with Timken bearings for enhanced reliability
- **Automatic Tramp Discharge**: Protects against overloads and foreign objects
- **Motor Starter**: Included for easy operation and motor protection

### Installation Requirements
- **Floor Space Required**: 8'6" x 10'
- **Height (Without Hopper)**: 73"
(May vary from installation to installation)

### Other

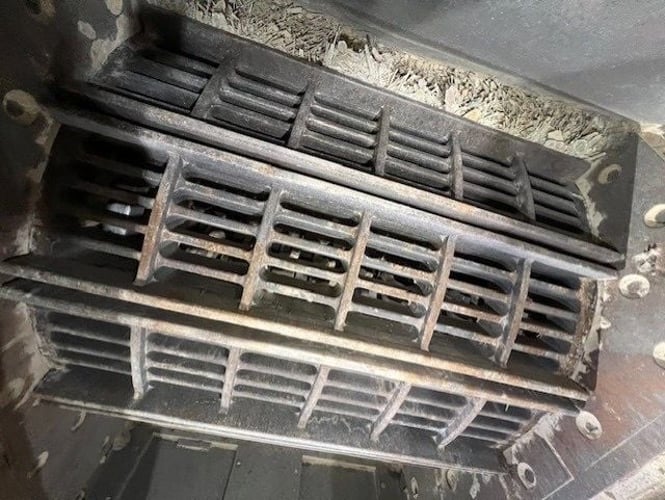

- **Grates**: Approximately 1" x 6" (See photos)

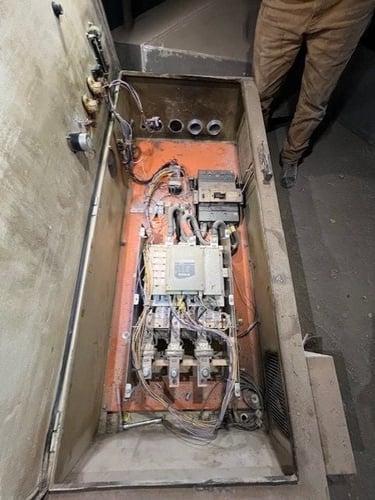

- **Controls**: See photos for included panel
- **Conveyor**: Includes (2) conveyors
