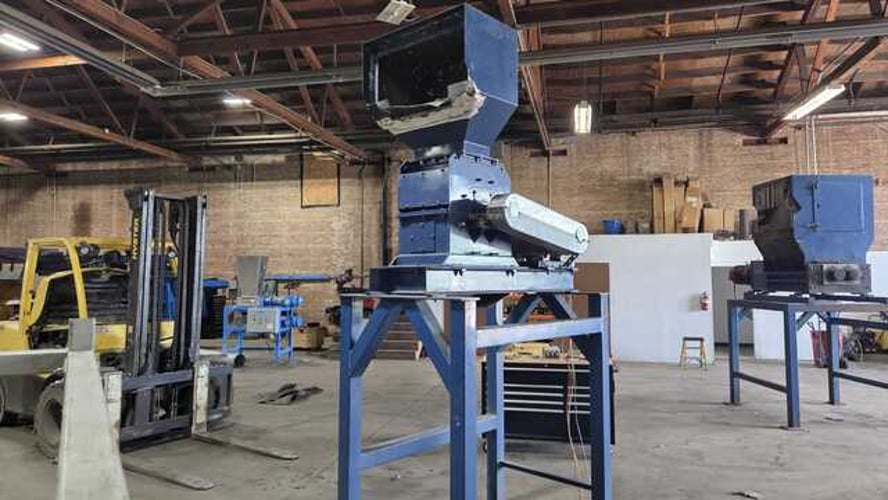

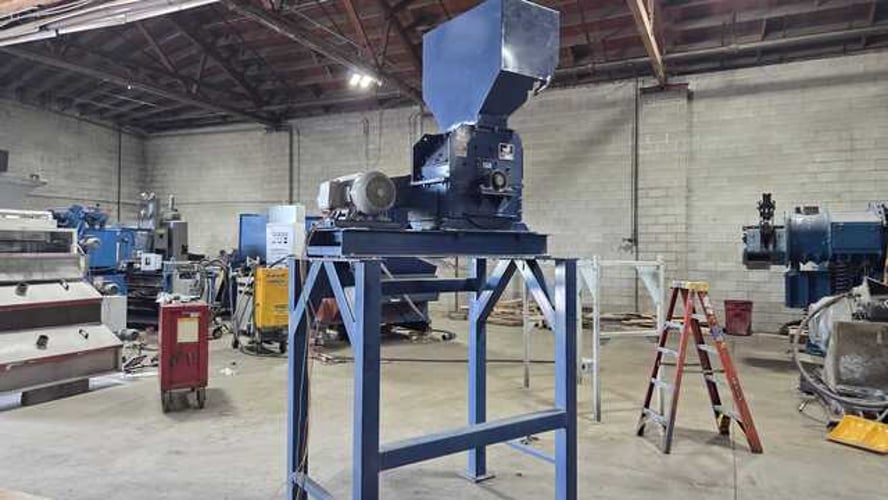

Type: Gravity-discharge hammer mill

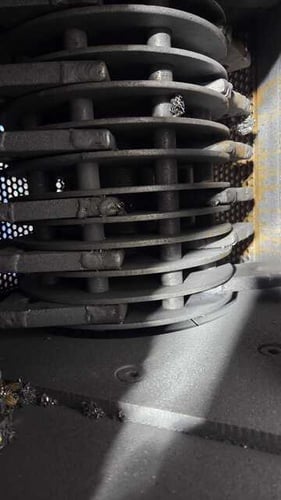

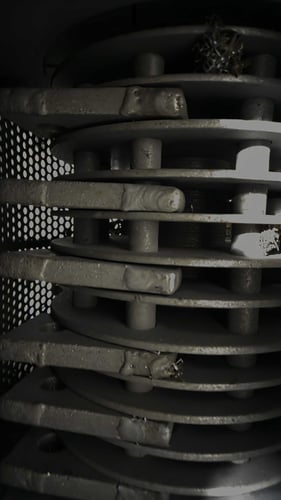

Rotor Diameter: 18 in. (460 mm)
Rotor Width: 16 in.
Housing Thickness: 1/2 in.
Wear Plate Thickness: 1/2 in.
Shaft Diameter: 2-1/2 in.
Bearing Diameter: 1-15/16 in.
Recommended Speed Range: 600–3,000 RPM
Typical Motor Size: 20–50 HP
Construction: Carbon steel or stainless steel

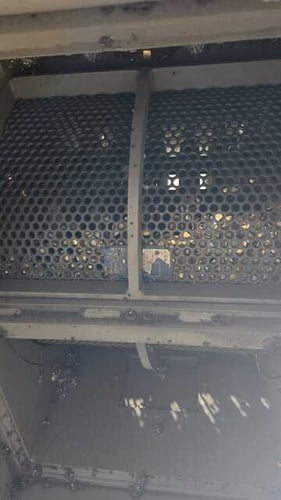

Discharge: Screen or bar grate bottom discharge
Feed: Top gravity feed
