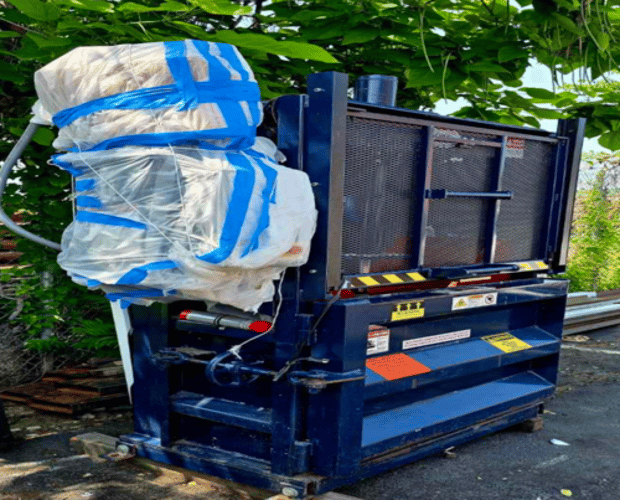

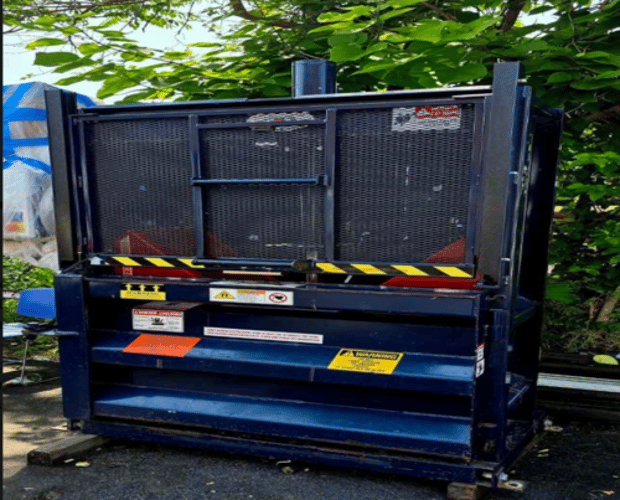

• Model: Cram-A-Lot VB-46-LD Vertical Baler
• Machine Type: Vertical Baler

• Performance & Bale Specifications:
• Nominal Bale Size: 46 in W × 24 in D × 36 in H
• Bale Weight (OCC): Up to 400 lbs
• Average Bale Weight:
• 400 lbs (Corrugated)
• 480 lbs (Paper / Shrink Wrap)
• Platen Force: 31,800 lbs (15.9 tons)
• Platen Face Pressure: 41 psi
• Average Cycle Time: 39 seconds

• Mechanical, Hydraulic & Electrical System:
• Motor:
• 5 HP
• 3-Phase
• 208 / 230 / 460 V
• Hydraulic Operating Pressure: 2,000 psi
• Hydraulic Pump Capacity: 6 GPM
• Hydraulic Reservoir Capacity: 11 gal
• Hydraulic Cylinder:
• Bore: 4.5 in
• Stroke: 36 in
• Rod Diameter: 2.5 in

• Physical Dimensions & Weight:
• Installed Overall Height: 117 in (9 ft 9 in)
• Frame Height: 82.5 in
• Overall Width: 68 in
• Overall Depth (Door Closed): 37 in (3 ft 1 in)
• Overall Depth (Door Open): 81.5 in
• Feed Opening Height: 24 in
• Load Height: 42 in
• Unit Weight: 2,750 lbs

• Typical Materials:
• Corrugated Cardboard (OCC)
• Paper
• Shrink Wrap
• Plastic Film
• Recyclable Packaging Materials
