Specifications:

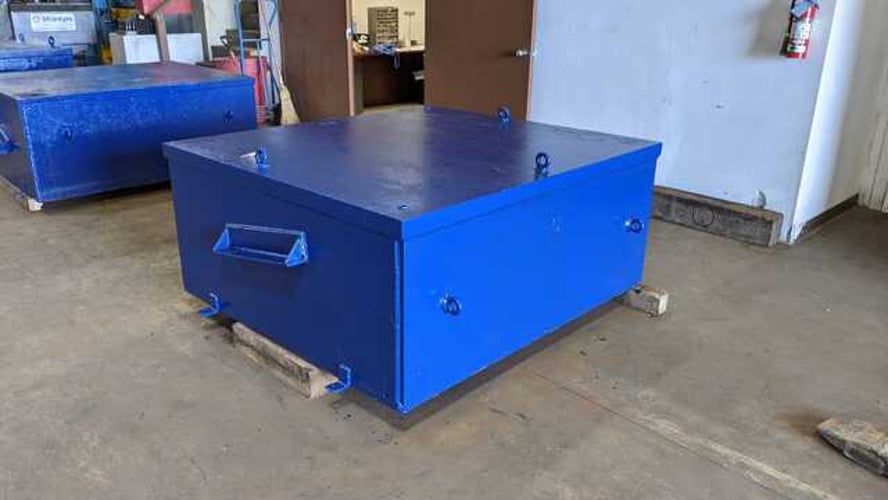

Size of Electromagnet: 67" x 61"
Magnet Volts: 230 d-c
Total d-c amps: Cold 147
Total Magnet Watts: 33,900
Magnet cleaning belt stainless steel durabelt 3/16" thick pads and cleats
Stainless steel rollers on both sides of pole shoe
Variable Speed Drives: 125 to 375 FPM
Magnet Cleaning Belt Motor: 7 1/2 HP, TEFC, 240/480V, 3ph, 60hz
_____________________________________________________________________
Feed Conveyor:

Width of Feed Conveyor Belt: Up To 72"
Width of Burden on the feed conveyor belt: 60"
Depth of Burden on the feed conveyor belt: 6" to 10"
