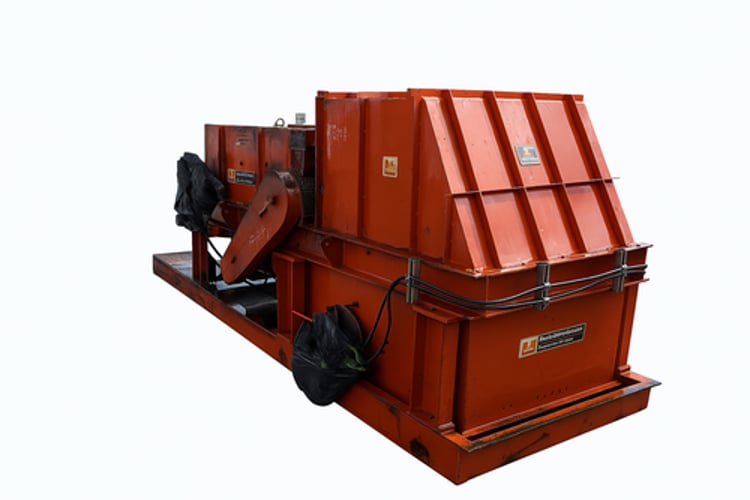

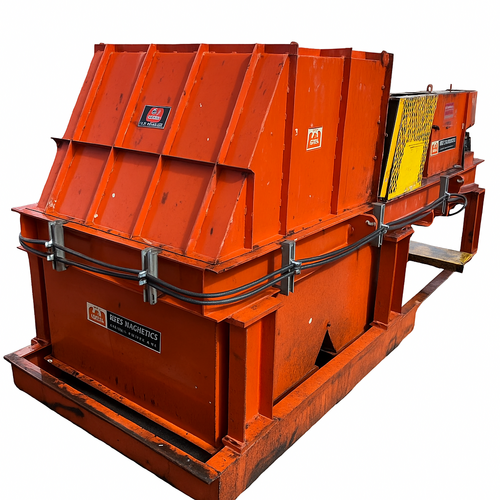

Model ECS-3615
48" Wide Belt
No Control Panel

• Equipment:
• Manufacturer: Eriez Magnetics
• Model: ECS-3615
• Type: Eddy Current Separator
• Condition: Used

• Capacity & Separation:
• Effective Separation Width: 36 in. (914 mm)
• Conveyor Belt Width: 48 in. (1,219 mm)
• Separation Type: Continuous Automatic Non-Ferrous Metal Recovery
• Common Applications: Zorba, ASR, MSW, Plastics, Glass & Electronic Scrap Recycling

• Dimensions:
• Rotor Diameter: 12 in.
• Rotor Face Width: 36 in.
• Overall Footprint: Approximately 81 in. W x 14 ft. L
• Approximate Weight: 5,000 lbs (2,268 kg)

• Magnetic Rotor Assembly:
• Magnet Type: Erium 3000 High-Intensity Rare Earth Permanent Magnets
• Rotor Design: High-Speed Concentric / Eccentric Magnetic Rotor
• Field Design: High-Frequency Magnetic Field with Optimized Surface Penetration

• Drive System:
• Rotor Drive Motor: 15 HP
• Conveyor Belt Motor: 3 HP
• Voltage Options: 230 / 460 / 575 VAC
• Phase: 3-Phase
• Frequency: 60 Hz
• Controls: Variable Frequency Drives (VFD) for Rotor & Belt Speed Control

• Construction:
• Conveyor Frame: Welded Structural Steel
• Conveyor Belt: Heavy-Duty Urethane Belt with Integrated Side Guides
• Drum Shell: Non-Metallic Non-Conductive Composite
• Product Splitter: Adjustable Non-Magnetic Splitter Box

• Typical Applications:
• Non-Ferrous Metal Recovery
• Auto Shredder Residue (ASR)
• Municipal Solid Waste (MSW)
• Electronic Scrap Recycling
• Glass Cleanup
• Plastics Processing
