Specification Typical Value
Manufacturer Fitzpatrick
Model DASO-6 / DASO6
Type Hammer Mill / Comminutor
Milling Chamber Approximately 6" wide × 11–14" long (varies by configuration)
Rotor Diameter Approximately 10.5 in.
Blades 16 fixed or reversible knives (sharp, blunt, or combination)
Motor 20HP
Rotor Speed Up to approximately 7,200 RPM (configuration dependent)
Electrical 230/460 VAC, 3 Phase, 60 Hz
Construction Stainless steel product contact surfaces (many units fully stainless)

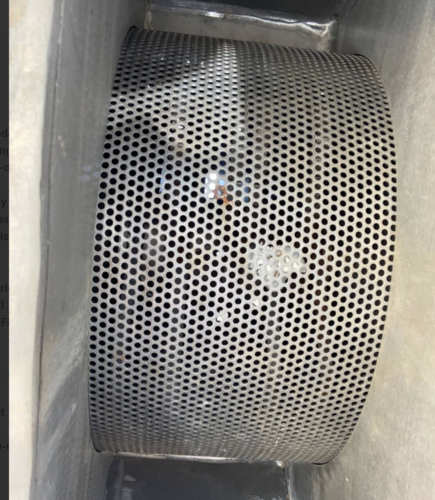

Screens Interchangeable perforated screens for particle size control

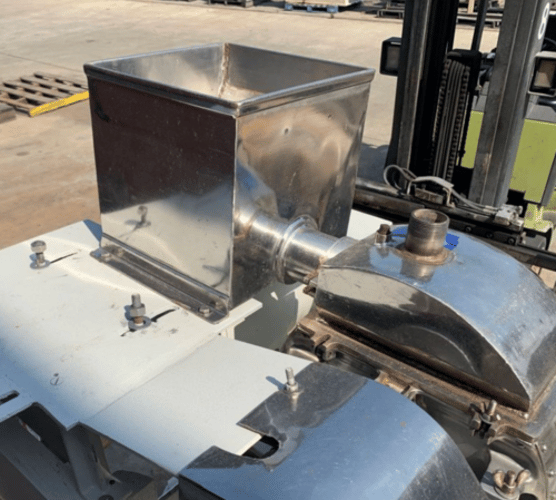

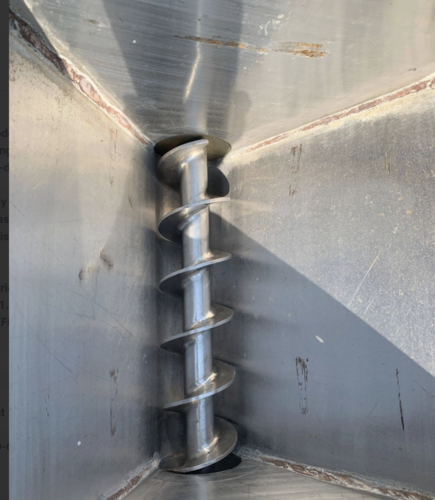

Feed Options Gravity feed, screw feed, or hopper feed

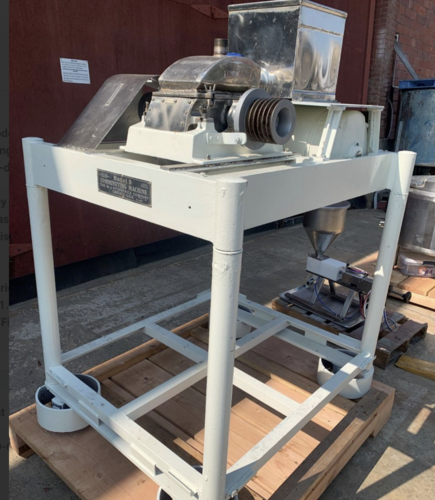

Mounting Portable frame with casters is common

Specifications vary depending on the machine's age and original build options.

Applications
Pharmaceuticals
Food ingredients
Nutraceuticals
Chemicals
Plastics
Minerals
Agricultural products
