Motor & Drive:
* Motor Horsepower: 75 HP
* Motor Speed: 1775 RPM
* Drive Type: Direct coupled planetary gear drive
* Configuration: Dual shaft (twin-shaft) design
* Shaft Diameter: 7-inch hex shafts
* Torque: High-torque, low-speed cutting action
* Transmission: No drive belts; direct drive for reduced maintenance

Electrical:
* Voltage: 460V
* Phase: 3 Phase
* Frequency: 60 Hz

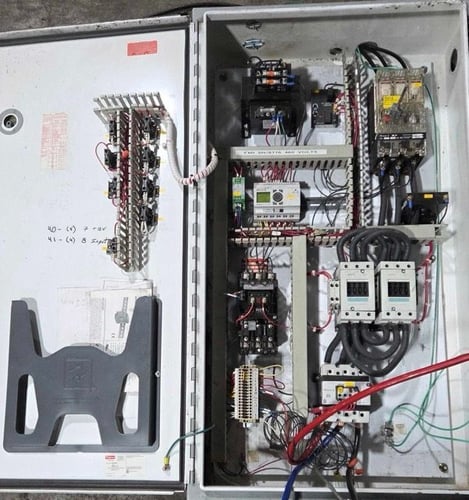

* Controller: PLC-based automatic reversing control system
* Protection: Integrated overload protection with auto-reverse on jam

Dimensions & Weight:
* Blade Thickness: 2"
* Feed Opening: 28" x 42"
* Cuttin Chamber: 24" x 42.5"
* Overall Footprint: 68" x 144"
* Weight: Approximately 8,500 - 10,500 lbs (varies by stand and hopper configuration)

Construction & Materials:

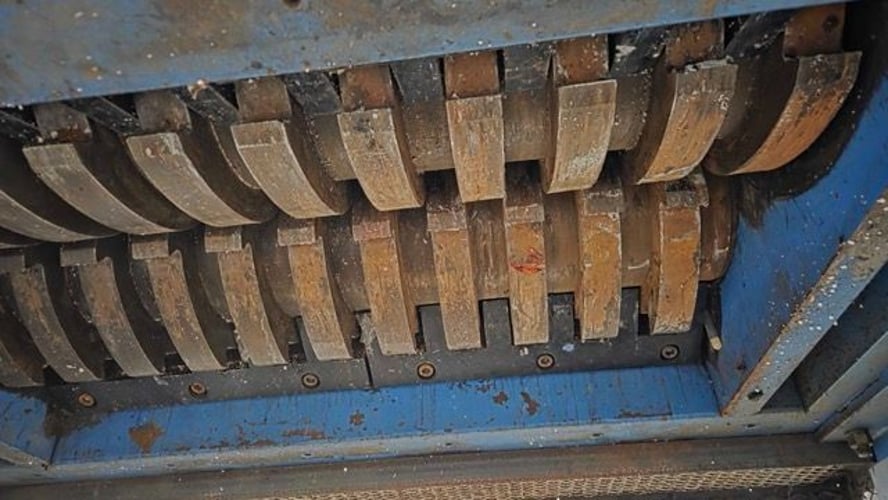

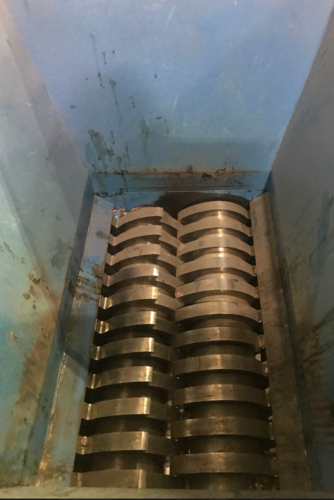

* Cutting Chamber: Heavy-duty welded plate steel
* Cutters: Hardened alloy steel, precision ground
* Housing: Ductile iron and carbon steel construction
* Coating: Industrial grade heavy epoxy coating
* Seals: Mechanical labyrinth shaft seals for bearing protection
* Hardware: High-strength fasteners and ruggedized frame components
