Mounts above a 60" (1500mm) wide or narrower belt (See drawing for details)
Up to 12" (300mm) working gap

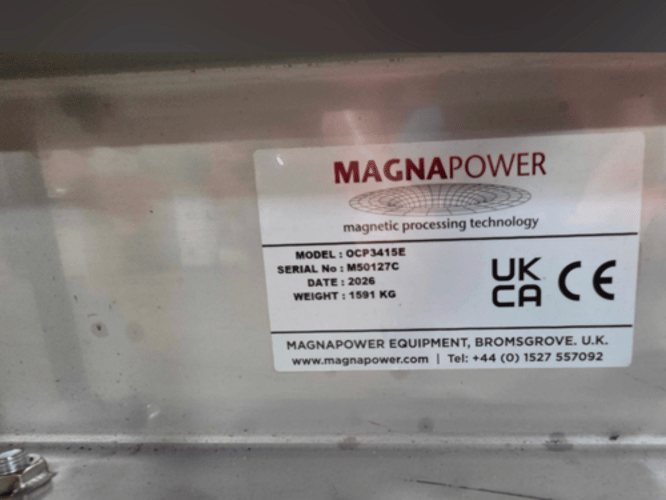

- Manufacturer: Magnapower Equipment Ltd.
- Model: OCP3415E
- Type: Permanent Crossbelt Magnetic Separator

- Maximum Conveyor Width: 60" (1,500 mm)
- Effective Magnetic Width: 60" (1,500 mm)
- Working Gap: Up to 12" (300 mm)
- Maximum Lift Distance: Up to 73" (Material Dependent)

- Magnet Type: High-Intensity Permanent Ferrite
- Pole Configuration: Alternating Multi-Pole
- Cleaning System: Continuous Self-Cleaning Crossbelt

- Drive Motor: 1.5 kW (2 HP)
- Drive Type: Geared Motor
- Electrical Requirements: 400V, 3-Phase, 50 Hz
- Belt Speed: Approx. 300 ft/min (1.5 m/s)

- Frame Construction: Heavy-Duty Stainless Steel
- Suspension: 4-Point Lifting Eyes w/ Turnbuckles
