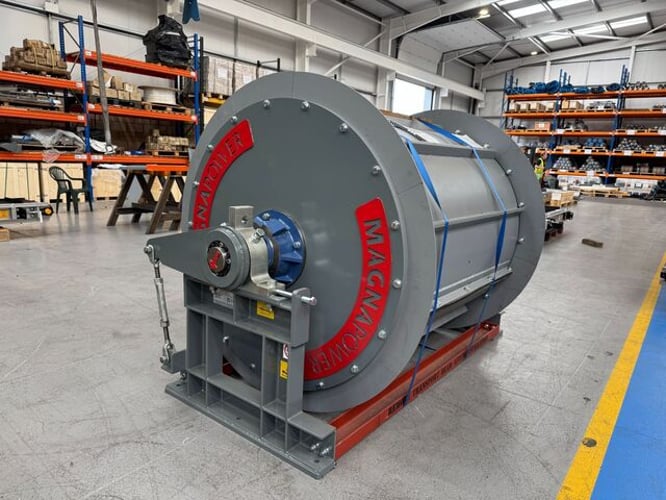

**NEW MAGNAPOWER PFD 120-150 PERMANENT MAGNETIC DRUM SEPARATOR**

**Features:**
• 48"W × 60"L permanent magnetic drum for continuous ferrous recovery from bulk material streams
• Adjustable magnet arc — repositionable / rotatable magnet block with external position indicator for optimal pick-up and product zoning
• Heavy-duty replaceable wear skin over the drum shell
• Direct-drive gearmotor with drum rotation sensor
• Separate ferrous and residue discharge outlets
• US-spec 60Hz motor fitted — ready for immediate despatch

**Included:**

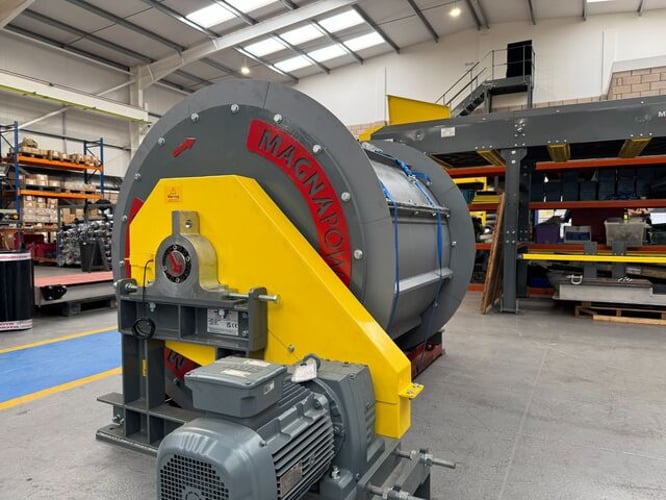

• Drum drive (gearmotor)
• Base / support frame

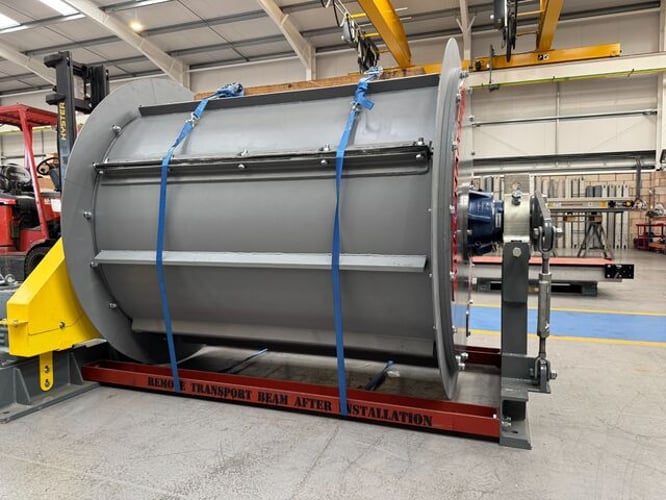

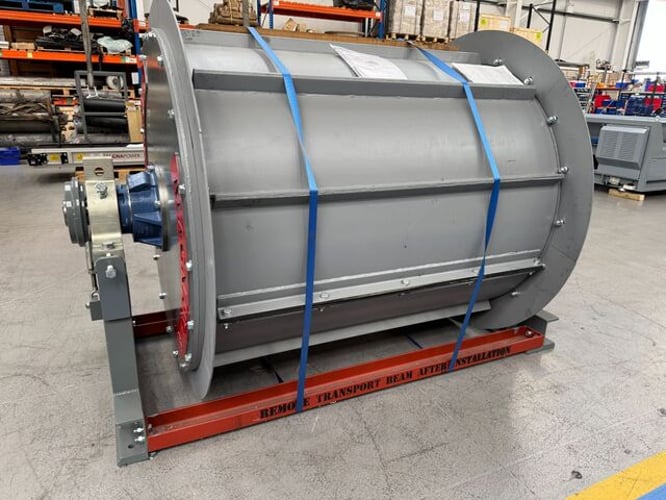

• Transport frame (beams removed upon installation)

Manufacturer: Magnapower Equipment Ltd (Bromsgrove, UK)
Model: PFD 120-150 (48" x 60")
Type: Permanent Magnetic Drum Separator - ferrous recovery

Drum diameter (wear skin): O1216 mm (47.9" / ~48")
Side skirt diameter: O1520 mm (59.8" / ~60")
Drum / working width: 1410 mm wear cover; 1488 mm between side skirts (nominal 60")
Drum rotation speed: approx 21 rpm
Typical working gap: 250 mm (9.8")

Drive motor: 7.5 kW (10 HP), IE3
Electrical supply: 460 V / 3-Phase / 60 Hz (US spec fitted)
Full-load current: 26.5 A / 13.3 A
Drum rotation sensor: 24 V DC, 1 pulse per rotation

Magnet: adjustable / rotatable permanent magnet block with external magnet position indicator
Discharge: separate FE (ferrous) outlet and residue outlet

Overall length: approx 2785 mm (109.6" / 9.1 ft)
Total mass: 6,031 kg (13,296 lbs)
Configuration: supplied complete with drum drive and base frame
Condition: New build - US-spec 60Hz motor fitted, available for immediate despatch (pallet to be manufactured depending on freight type)
