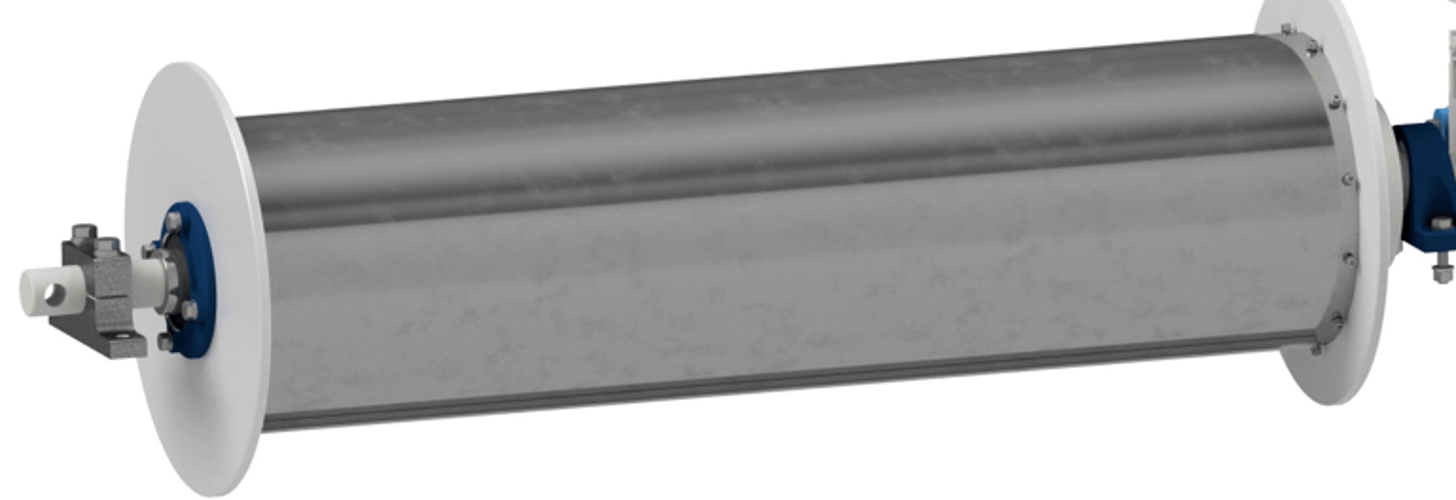

Model 32/120 Neodymium Rare Earth Drum Magnet
Drum Only, Housing and Motor Not Included (without feeder)

- Manufacturer: Magnapower Equipment Ltd.
- Model: PMDS 32/120 RE
- Type: Permanent Rare Earth Drum Magnet
- Configuration: Drum Only (No Motor or Gearbox)

- Drum Face Width: 48" (1,200 mm)
- Drum Diameter: Approx. 12.5" - 16" (320 - 400 mm)
- Feed Type: Top-Fed, Vibratory Tray or Chute Feed
- Material Size: Fine to Medium Scrap Fractions

- Magnet Material: Neodymium Rare Earth (NdFeB)
- Magnetic Field: High-Gradient, High-Intensity
- Internal Magnet Arc: Approx. 180° Stationary Multi-Pole
- Target Materials: Fine Ferrous Metals, Weakly Magnetic Materials & Stainless Steel

- Drum Shell: Heavy-Duty Non-Magnetic Stainless Steel
- Internal Magnet Position: Adjustable Stationary Magnetic Yoke
- Drive Shaft: Stub Shaft for Direct, Chain or Belt Drive
- Bearings: Heavy-Duty Pillow Block / Flange Mounted
