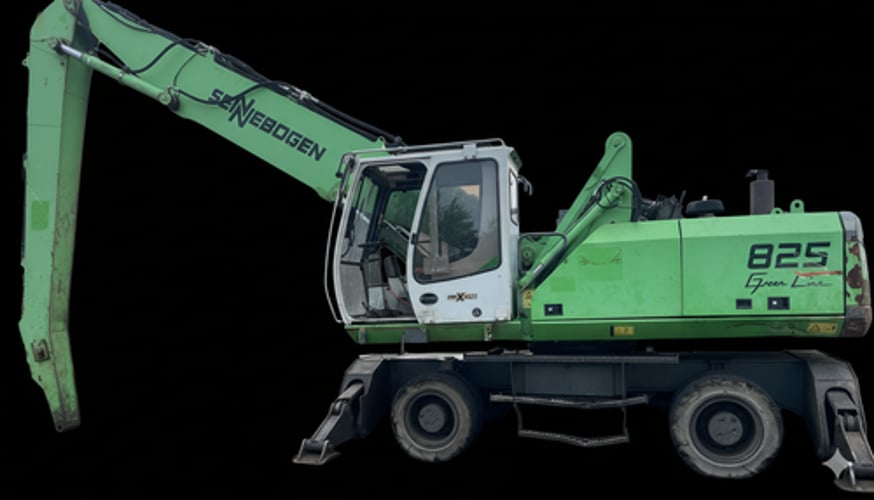

• Model: SENNEBOGEN 825
• Machine Type: Material Handler
• Available Configurations: Mobile (Rubber-Tired), Crawler, Stationary
• Operating Weight: 36,400–38,700 kg
• Engine: Cummins Turbo Diesel
• Engine Output (ISO 9249): 155 kW (211 HP)
• Maximum Reach: 16 m
• Boom Options: Up to 16 m
• Hydraulic System: Load-Sensing (LUDV)
• Hydraulic Pump: Variable-Displacement Axial Piston
• Hydraulic Flow: 410 L/min
• Maximum Hydraulic Pressure: 350 bar
• Fuel Tank Capacity: 450 L
• Hydraulic Oil Capacity: 310 L
• DEF Tank Capacity: 45 L
• Electrical System: 24 V
• Batteries: 2 × 155 Ah
• Drive System: Hydrostatic All-Wheel Drive (Mobile Version)
• Travel Speed:
• Low Range: 0–7 km/h
• High Range: 0–20 km/h
• Tires: 10.00-20 Solid Rubber (Standard)
• Optional Magnet Generator: 15 kW
• Energy Recovery System: Patented ERC (Energy Recovery Cylinder) System for increased handling capacity and reduced fuel consumption
• Performance:
• Faster Work Cycles
• More Homogeneous Operation
• Higher Productivity
• Improved Fuel Efficiency
• Cab Features:
• Elevating Cab
• Optional 30° Tilting Cab
• Air-Suspension Operator Seat
• SENCON Machine Control System
• Attachment Compatibility:
• Orange Peel Grapples
• Sorting Grapples
• Scrap Shears
• Lifting Magnets
• Buckets
• Hooks
• Quick Coupler: Vario Tool Hydraulic Quick-Coupler
• Versatility:
• Multiple Boom and Stick Configurations
• Wide Range of Attachment Options
• Optimized for Scrap Handling, Recycling, Ports, Timber, and Bulk Material Applications
