• Equipment:
• Manufacturer: R.M. Johnson Co., Inc.
• Model: E-Z Crusher Model A
• Type: Portable Car Crusher
• Condition: Used

• Capacity:

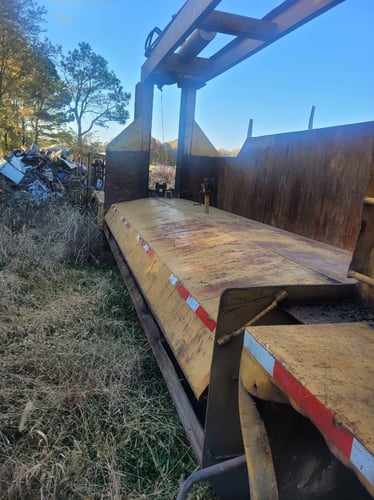

• Crushing Chamber: 20 ft. x 8 ft. 1 in. x 7 ft. 7 in.
• Average Cycle Time: Approximately 48 Seconds
• Hydraulic Crushing Design: Bottom-Mount Pull-Down Cylinder System

• Hydraulic System:
• System Pressure: 2,500 PSI
• Port Relief Pressure: 2,650 PSI
• Main Cylinders: 10 in. Bore
• Cylinder Stroke: 78 in.
• Cylinder Rod Diameter: 4 in.

• Engine & Controls:

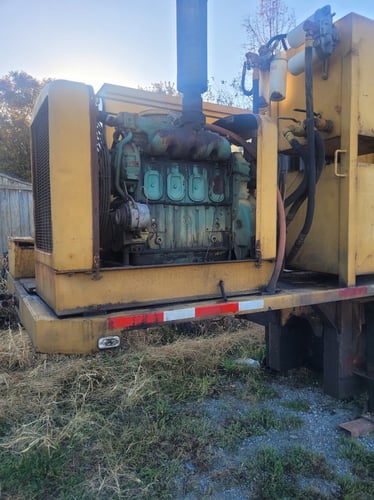

• Power Source: John Deere or Volvo Diesel Engine
• Controls: Manual Hydraulic Controls or Optional Remote Automatic Controls

• Dimensions:
• Overall Length: 43 ft. 3 in.
• Overall Height (Travel/Operating): 13 ft. 3 in.
• Operating Weight: Approximately 61,000 lbs.

• Construction:
• Heavy-Duty Structural Steel Frame
• Bottom-Mount Hydraulic Cylinder Design Reduces Frame Stress

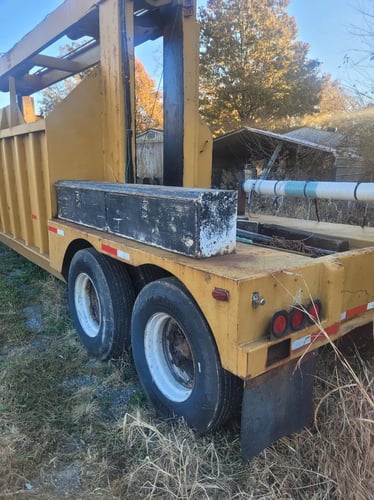

• Portable Trailer-Mounted Configuration
• Automatic Crushing Cycle Capability

• Typical Applications:
• End-of-Life Vehicle (ELV) Processing
• Scrap Metal Recycling
• Auto Salvage Yards
• Vehicle Volume Reduction
• Scrap Transportation Preparation
