100 HP Motor
24" Rotor Diameter

Housing: ¾" (20 mm)
Shaft Diameter: 3¼" (80 mm)
Rotor Width: 17½" (445 mm)
Rotor Diameter: 24" (610 mm)
Bearings: 215/16" (75 mm)

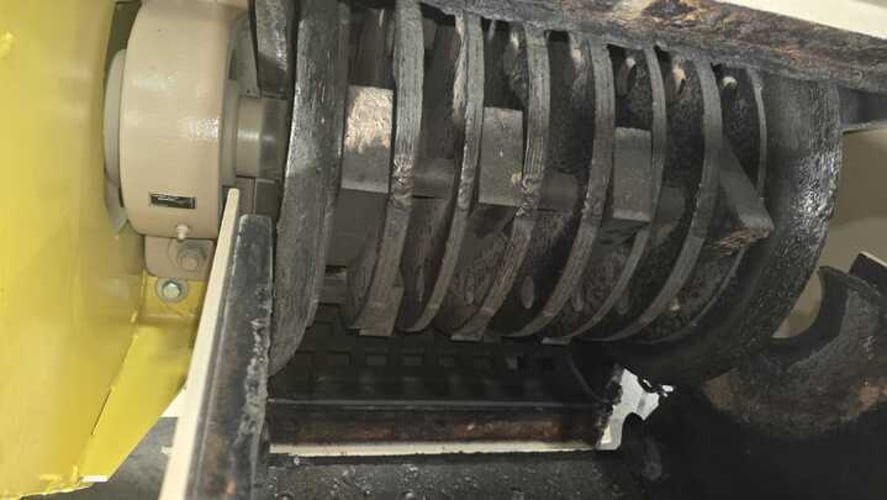

Hammers: 7" x 1.37" x 3" @ Approx 8 lbs Each
Grates: 1.3" x 1.3" (33 mm x 33mm)
Integral Fan System: 18" (460 mm) 4,000 CFM
Shaft Speed: 3,600 rpm
Power: 75-100 hp (55-75 kW)
Tip Seed: 22,600
