Shearing force: 500 tons
Pre-compression force: 100–120 tons
Main compression force: 163 tons
Folding box force: 210 tons per side (6 cylinders)
Motor: ABB 125 HP (90 kW), 460V, 3-Phase, 60 Hz, 1,750 RPM
Max current draw: 190 amps
Hydraulic pumps: Rexroth variable displacement piston pump + Denison vane pump
Max hydraulic working pressure: 4,300 PSI
Throat opening: 22"W × 26"H

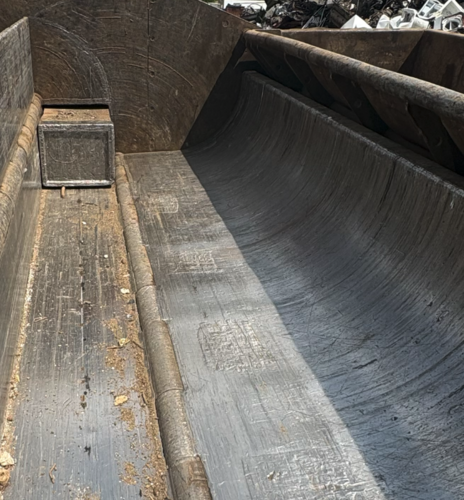

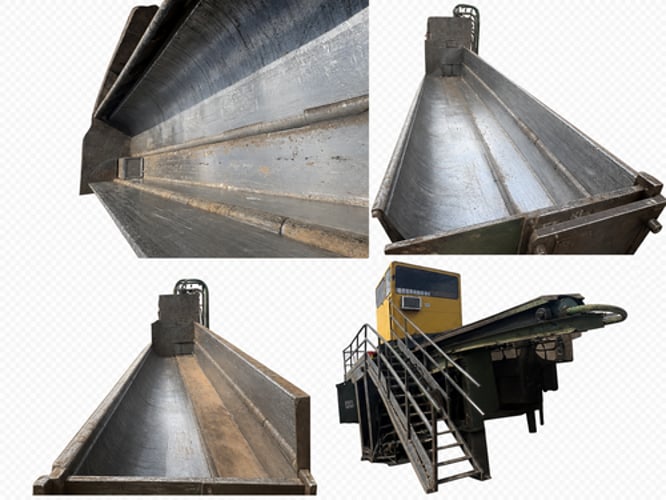

Charging box (open): 19'8"L × 6'8"W
Charging box (closed): 19'8"L × 24"W × 20"H
Overall footprint: ~50'L × 20'W
Operating weight: ~124,000 lbs (62 tons)
Oil tank capacity: 688 gallons
Cycle rate: 4–8 cuts/minute
Shearing capacity: 12–16 tons/hour
Baling capacity: 11–13 tons/hour
Logging capacity: 14–15 tons/hour
Bale output size: 20" × 24" × variable
Average bale weight: 750–900 lbs
Average bale density: 75–90 lbs/ft³
