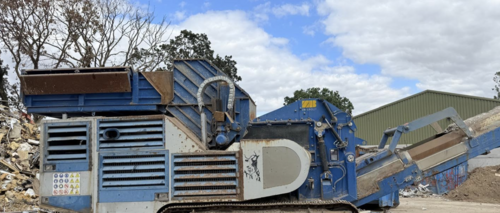

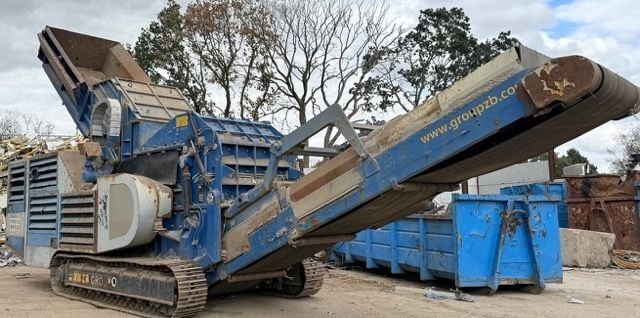

• Manufacturer: ZB Group
• Model: THOR 1616 K

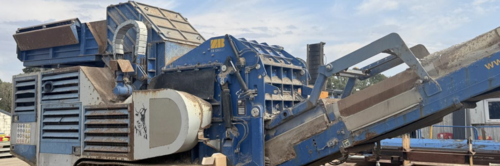

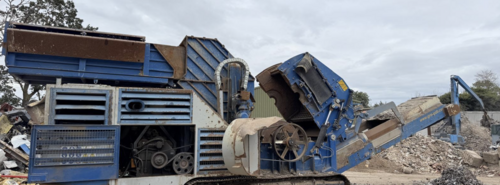

• Equipment Type: Portable Hammermill Shredder

• CUTTING & PERFORMANCE
• Hammermill Width: 63" (1,600 mm)

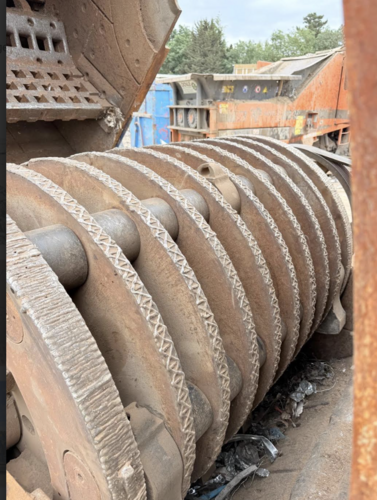

• Rotor Diameter: 63" (1,600 mm)
• Throughput: Approx. 18–23 Metric TPH
• Hammer Weight: Approx. 140 lbs Each

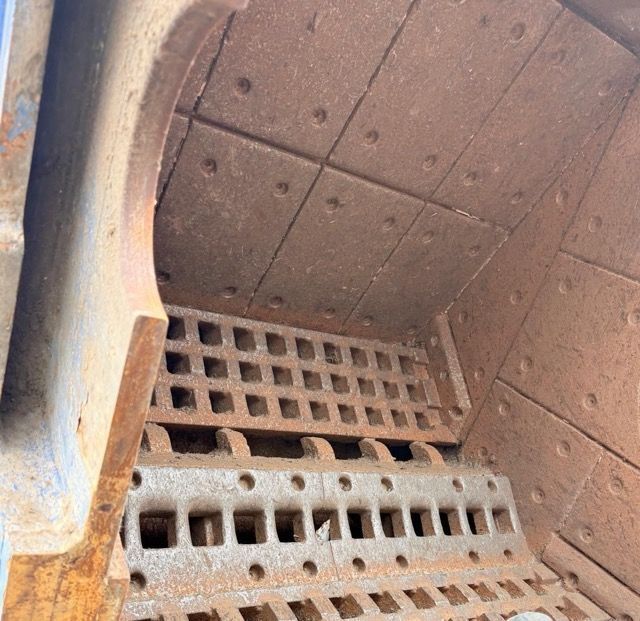

• Replaceable Sizing Grates

• POWER & DRIVE
• Engine: Caterpillar C18 Diesel
• Engine Power: 755 HP
• Heavy-Duty V-Belt Drive

• MOBILE SYSTEM

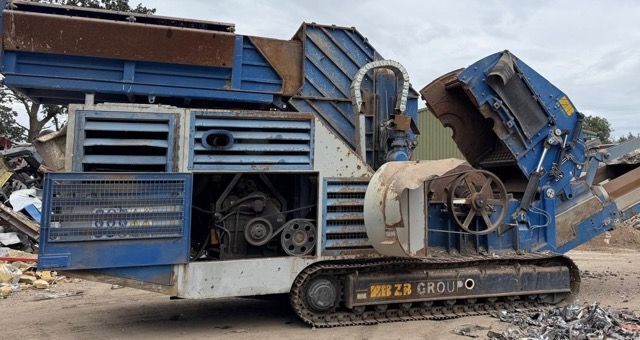

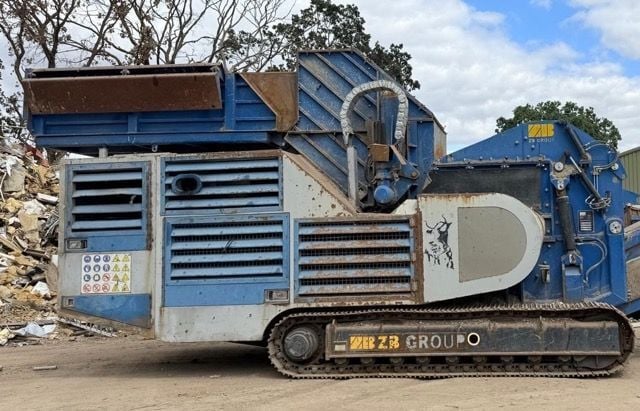

• Track-Mounted Undercarriage

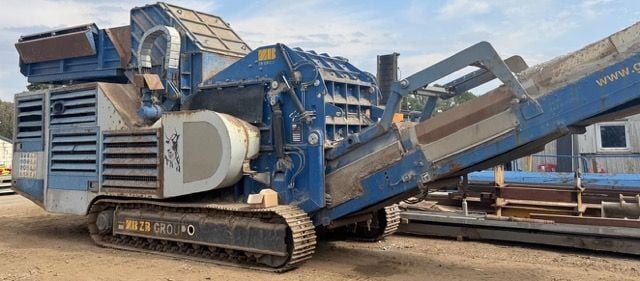

• Reinforced 47" Discharge Conveyor
• Hydraulic Reject Door
• Remote Control
• Hydraulic Hammer-Pin Extractor

• FEATURES
• Automatic Feed System
• Optional Magnetic Separation
• Applications: Ferrous, Aluminum,
White Goods & Pre-Shredded Scrap
