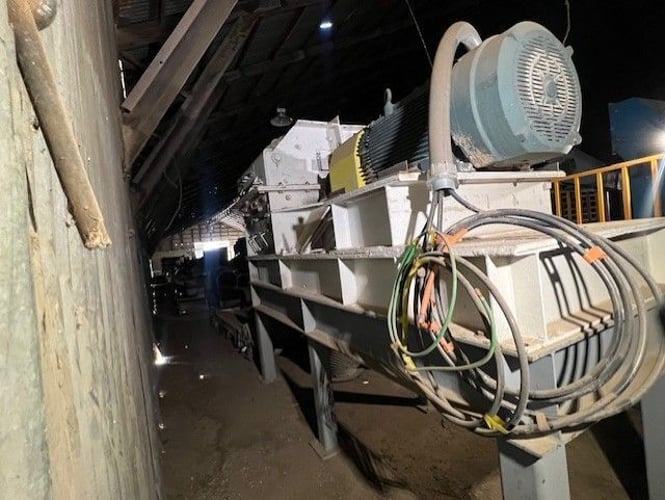

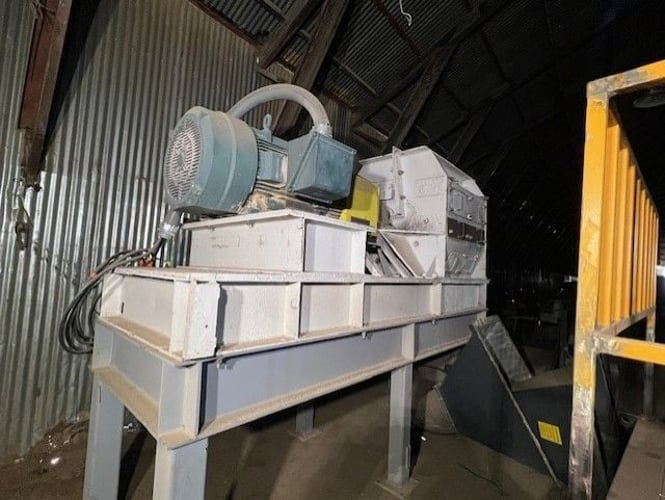

• Approximately 250 HP 3/60/440 Volt Electric Motor

General Overview:

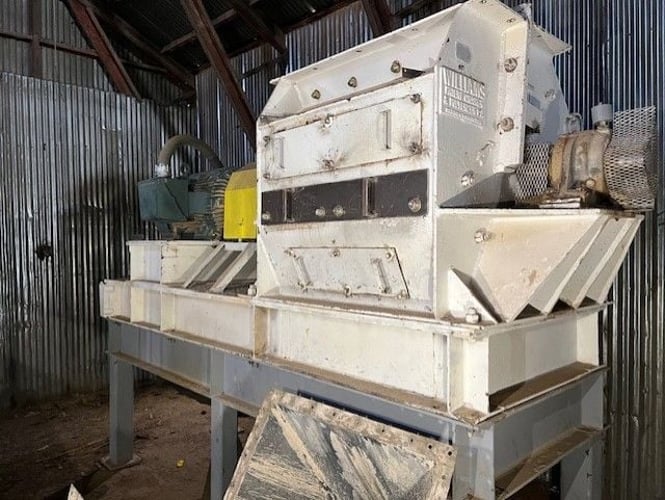

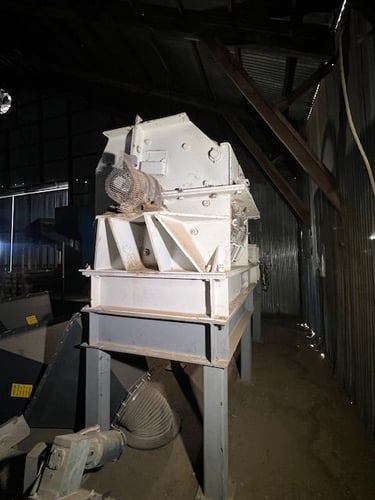

• The Williams Meteor High Speed Hammer Mill is a high-capacity fiberizing unit
• specifically designed for the absorbent medium and non-woven fiber markets.
• The design focuses on producing high-quality fluff with minimal fiber
• damage and high hammer-tip speeds for fine product output.

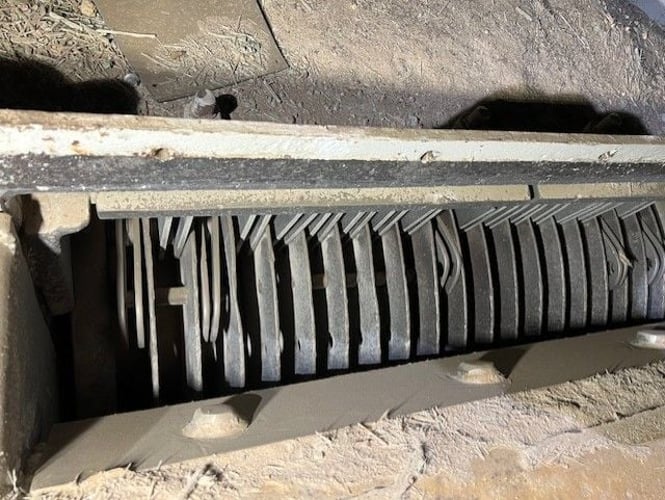

Rotor and Hammer Assembly:
• Rotor Diameter: 36 inches
• Rotor Width: 38 inches
• Hammer Type: Swinging hammer design
• Hammer Dimensions: 2-1/2 inches wide x 1/4 inch thick
• Hammer Arrangement: Patented staggered cluster configuration for 100%
surface coverage across center discs:
• Hammer Circle: Large diameter design allows for lower RPM operation
while maintaining necessary tip speeds:
1800 RPM.:

Feeding and Intake:
• Top Feed Opening: 44 inches Long x 8-1/2 inches Wide
• Feed System: Four independently driven pinch rolls
• Roll Tensioning: Spring-loaded and adjustable
• Material Compatibility: Configured for sheets or continuous rolls
• Feeder Breaker Bar: Innovative single-unit removable design for quick
interchange and jam clearance:

Construction and Materials:
• Housing Material: Heavy-duty 1/2 inch welded steel plate
• Rotor Material: Heavy-duty 1/2 inch plate steel construction
• Discharge: Large diameter housing provides high discharge area to
• prevent clogging and reduce pneumatic transport requirements

Adjustability and Precision:
• Breaker Bar Clearance: Externally adjustable in .002 inch increments
• On-the-fly Adjustment: Clearance can be modified while equipment is
in operation:
• Tray Assembly: Adjustable tray design to ensure product quality
consistency:

Performance Characteristics:
• Product Quality: Produces fiberized material with less than 5% fiber damage
• Operating Features: Reduced vibration and noise due to optimized
hammer circle dynamics:
• Maintenance: Large hammer circle reduces bearing downtime and wear
